Arvin Meritor 200320 Suspension Air Spring for Goodyear 3B12-304 Air Bellows Actuator
The Features of Goodyear 3B12-304
- This triple convoluted air spring is manufactured from high-quality natural rubber with steel cover plates. It features a minimum compressed height of 4.8 inches, a maximum extended height of 18.0 inches, and a working stroke of 13.2 inches.
- For the 3B12-304 model, the cover plate diameter is 9 inches, and the center-to-center distance is 6.2 inches.
- The industrial convoluted rubber air spring operates via gas filling. Its air connection is 1/4 NPTF, and the screw nut size is 2×3/8-16 UNC.
OEM Original Manufacturer
AUTOMANN Number: ABSP3B22R-8006
CONTI Number: 64568
CONTITECH Number: FT 330-29 503 / FT330-29 503
CONTITECH Number: FT 33029 503 / FT33029 503
CONTITECH Number: FT 330 29 503 / FT330 29 503
FIRESTONE Style 8006
FIRESTONE Style: W01-358-8006 / WO1-358-8006
FIRESTONE Style: W013588006 / WO13588006
FIRESTONE Style: W01 358 8006 / WO1 358 8006
LOAD GUARD Number: SC2132
SUSPENSIONS INC. 200620
TRIANGLE Number: 4430
TRIANGLE Number: 4503
TRP Number: ASP1710
Advantages of Rubber Actuators Over Traditional Solutions
Rubber actuators provide significant benefits compared to conventional rigid actuators and mechanical springs:
- Inherent Flexibility: Accommodates angular misalignment and movement without binding or requiring precise alignment.
- Space-Saving Design: Compact construction enables installation in confined spaces.
- Excellent Value: Superior power-to-price ratio delivers cost-effective performance.
- Maintenance-Free Operation: Requires no lubrication or routine maintenance.
- Extended Service Life: Enhanced durability ensures long-term reliability.
- Consistent Performance: Maintains stable operation under varying conditions.
Other Goodyear Pneumatic Air Bellows Numbers
| Single Convoluted | Double Convoluted | Triple Convoluted |
| 1B12-305 | 2B6-530 | 2B6-531 | 3B12-304 |
| 1B14-350 | 2B6-532 | 2B6-535 | 3B14-351 |
| 1B14-352 | 2B6-536 | 2B7-540 | 3B14-354 |
| 1B14-364 | 2B7-541 | 2B7-542 | 3B15-376 |
| 1B15-376 | 2B7-545 | 2B7-546 | 3B15-378 |
| 1B15-378 | 2B8-550 | 2B8-552 | 3B12-305 |
| 1B12-313 | 2B8-553 | 2B8-554 | 3B14-353 |
| 1B14-351 | 2B9-200 | 2B9-201 | 3B15-375 |
| 1B14-362 | 2B9-204 | 2B9-205 | 3B15-377 |
| 1B15-375 | 2B9-216 | 2B9-250 | |
| 1B15-377 | 2B9-251 | 2B9-253 | |
| | 2B12-309 | 2B12-218 | |
| | 2B12-425 | 2B12-429 | |
| | 2B12-437 | 2B12-416 | |
| | 2B14-352 | 2B14-353 | |
| | 2B14-354 | 2B14-355 | |
| | 2B14-362 | 2B14-363 | |
| | 2B14-452 | 2B15-375 | |
| | 2B15-376 | 2B15-377 | |
| | 2B15-378 | 2B19-8433 | |
| | 2B22-8539 | | |

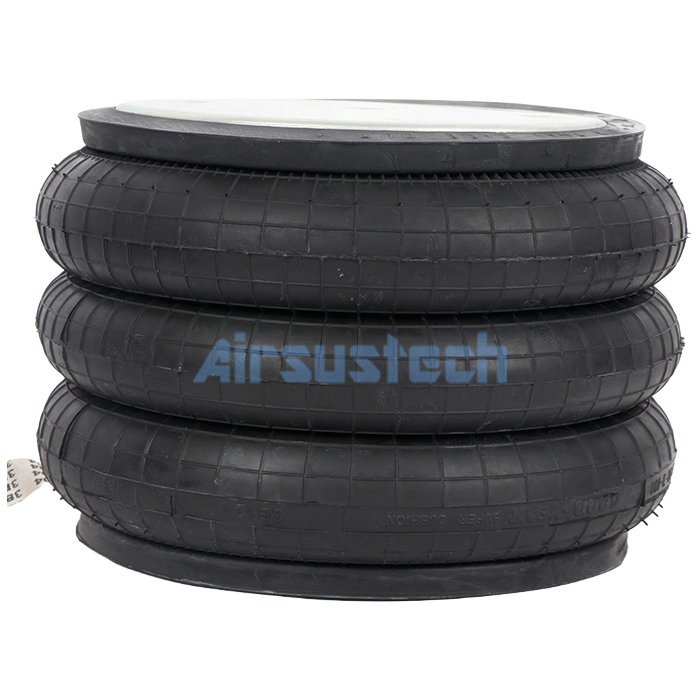

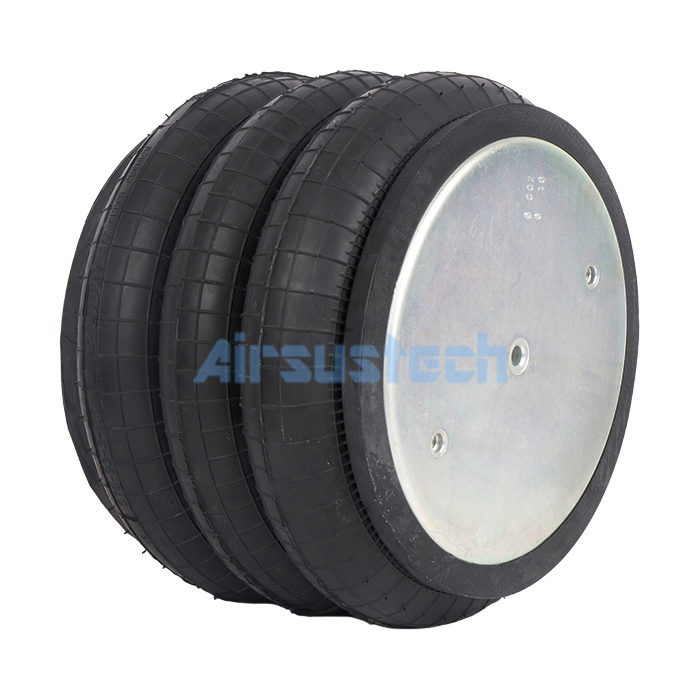

Goodyear 3B12-304 Related Images

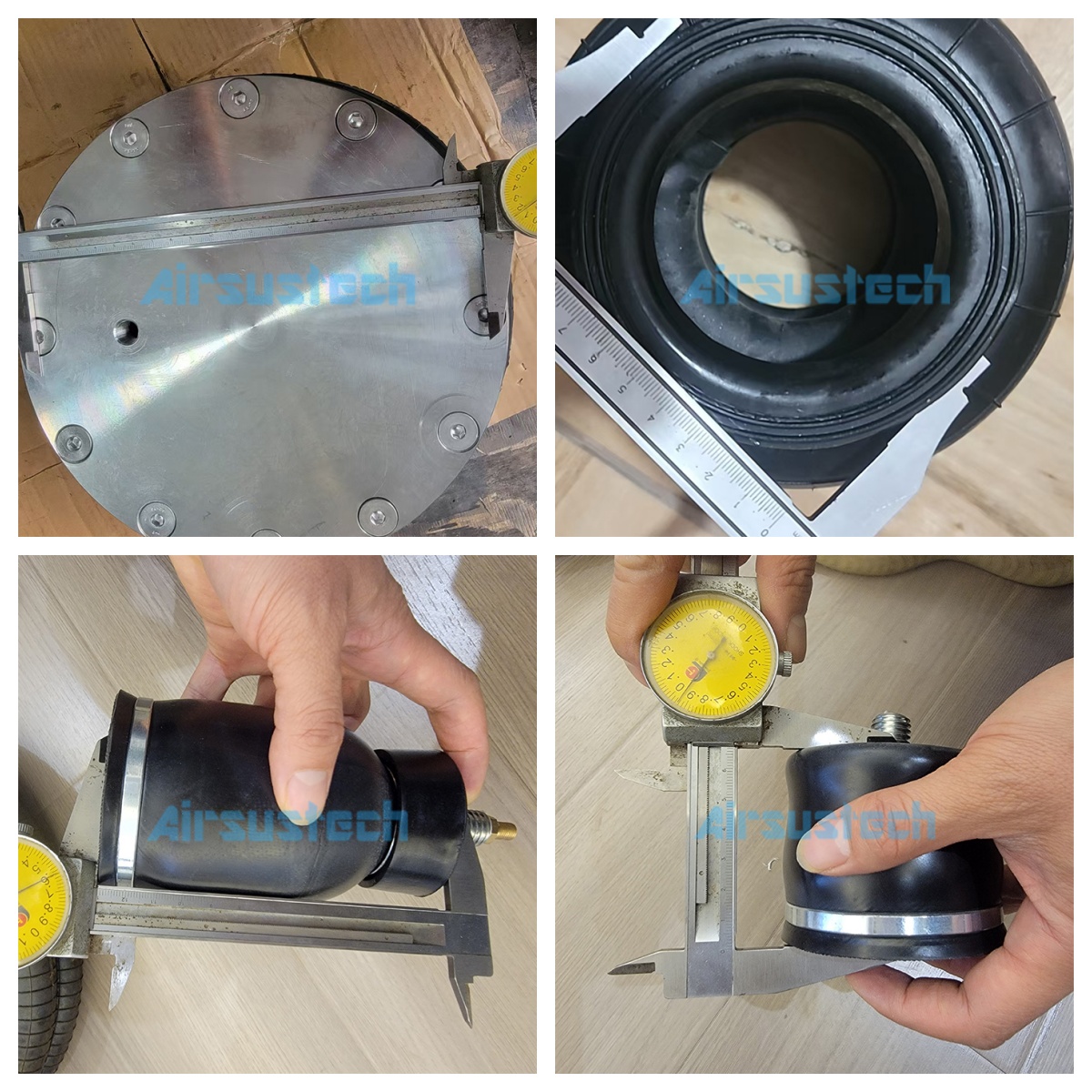

Our Technicians Measure the Air Suspensions

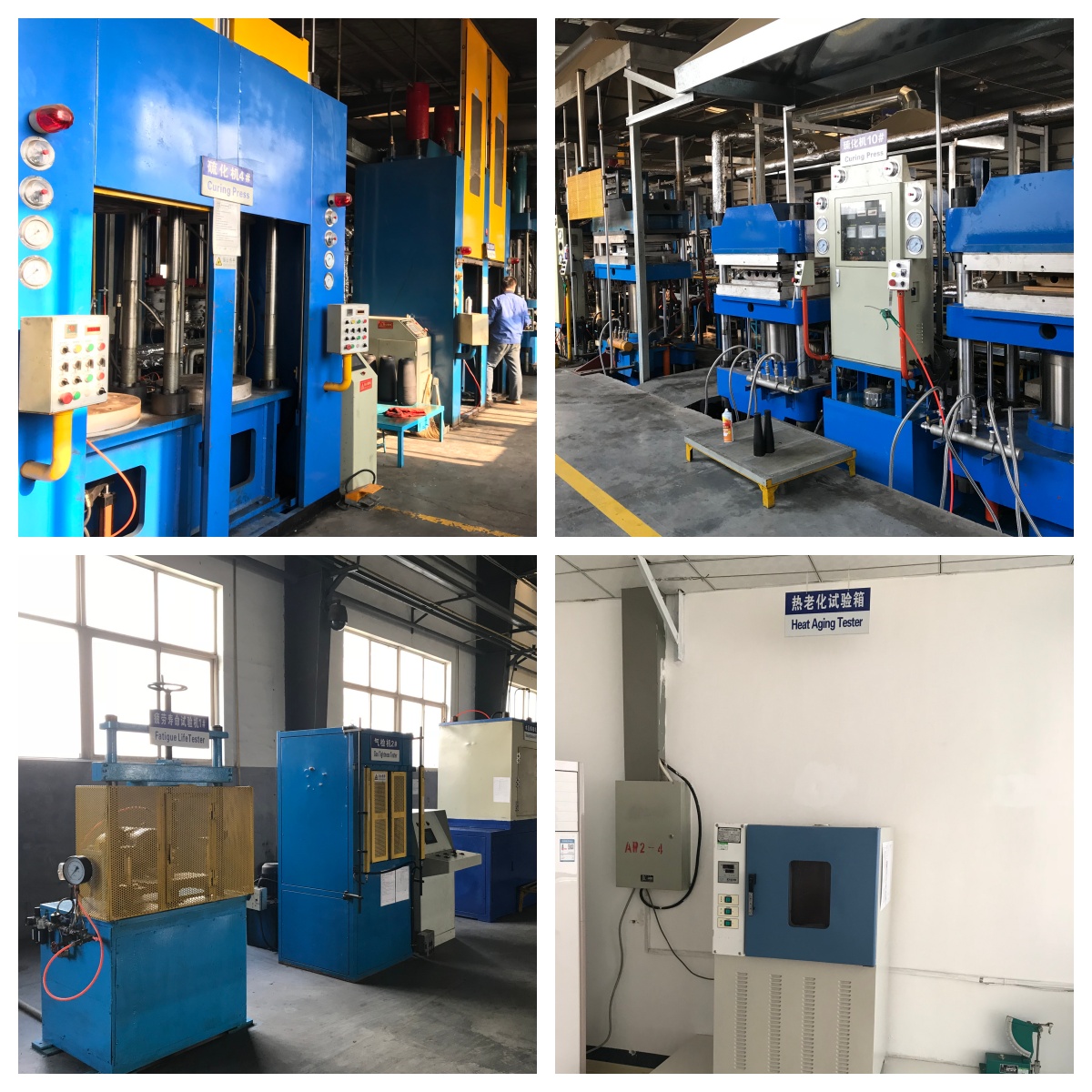

Production Equipment
