12×1 Suspension Air Spring Parker 9109044 G1/2 M10 Air Actuator with Flange Ring

Name: 121 Suspension Air Spring Parker 9109044 G12 M10 Air Actuator with Flange Ring
Brand: AIRSUSTECH
Price: 1 USD

China 12×1 Suspension Air Spring Parker 9109044 G1/2 M10 Air Actuator with Flange Ring wholesale

Brand Name : AIRSUSTECH

Model Number : 1B12×1T

Certification : ISO/TS16949:2009

Place of Origin : Guangzhou, China

MOQ : 1 pieces

Price : Negotiable

Payment Terms : T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram

Supply Ability : 1000pcs/week

Delivery Time : 3-8 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Model NO. : 1B12×1T

Static Height : 130 MM

Air Inlet : G1/2

Material : Rubber and Steel Flange

Bellows Type : Single Convolution

Product Name : Flange Ring Air Spring

Operation : Gas-Filled

Contact Now

12×1 Suspension Air Spring Parker 9109044 G1/2 M10 Air Actuator with Flange Ring

1B12×1T Air Bellows Features

Design height: 130 mm

Cover plate width: 260 mm

Center to center distance: 232 mm

Natural diameter of air bellows: 300 mm

Air connection: G1/2

Screw nuts type: 4-M10

Screw length: 25 mm

Manufacturer Part Numbers

Original Manufacturer	Refer Numbers
Parker	9109044
Firestone	W01-R58-4060, W01R584060, W01 R58 4060 WO1-R58-4060, WO1R584060, WO1 R58 4060
DUNLOP PNEURIDE	12''×1, 12'×1, 12×1
DUNLOP SPRINGRIDE	SP1540
Contitech	FS 412-10 DS
Norgren	M/31121

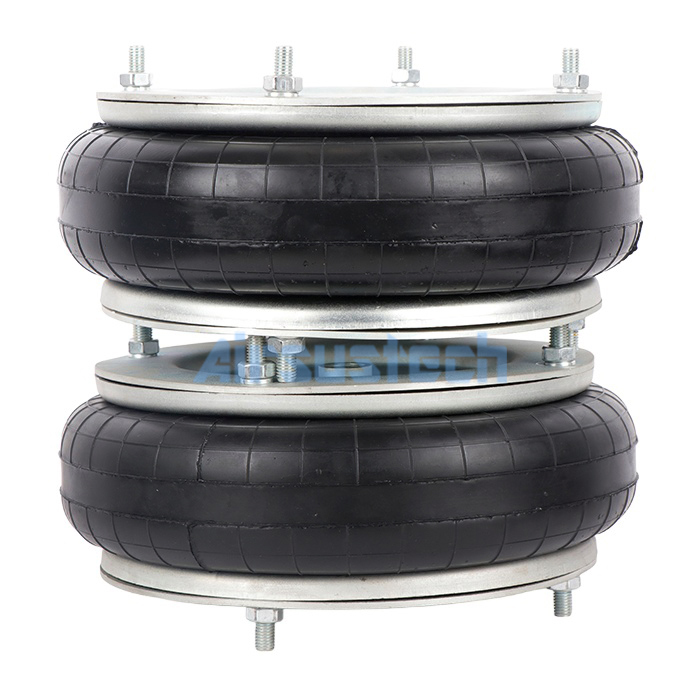

The Detailed Pictures of 1B12×1T

12×1 Suspension Air Spring Parker 9109044 G1/2 M10 Air Actuator with Flange Ring

Factory Workshop
