AIRSUSTECH F Series Punch Rubber Air Spring F-120-2 Cross YOKOHAMA S-120-2R
OEM Cross References
AIRSUSTECH: F-120-2
YOKOHAMA: S-120-2R
Product Dimensions
| Part Number | F-120-2 |
| Natural Height | 98 mm |
| Dimension - Max. Extended Height | 148 mm |
| Dimension - Min. Compressed Height | 53 mm |
| Dimension - Total Stroke | 95 mm |
| Dimension - Max. Outside Diameter | 180 mm |
How Does the F Series Self-sealing air springs Function?
1. Air Bag Structure
The F Series utilizes 1-5 layered air bags to deliver customizable vibration isolation. These pressure-responsive chambers expand/contract dynamically to accommodate varying operational loads.
2. Self-Sealing Mechanism
Proprietary elastomer construction enables automatic pressure retention without external seals. Precision manufacturing ensures zero leakage, maintaining consistent damping performance in extreme conditions.
3. Vibration Absorption
Multi-layer design effectively dampens both low-frequency shocks and high-frequency vibrations. Compressible air cushions impacts while isolating equipment from harmful oscillations.
4. Reinforced Construction
Galvanized steel collars between layers prevent over-expansion and enhance structural integrity. This ensures shape retention and stability under heavy loads.
5. Robust Performance
- Engineered for demanding environments with:
- High load capacity
- Chemical/moisture resistance
- Temperature resilience (-40°C to +70°C)
- Ideal for presses, marine equipment, and industrial machinery requiring reliable vibration control.
We Have Other Punch Rubber Air Bellows
| AIRSUSTECH Number | Yokohama Number | AIRSUSTECH Number | Yokohama Number |
| F-120-2 | S-120-2 | F-160-2 | S-160-2 |
| F-120-3 | S-120-3 | F-160-3 | S-160-3 |
| F-120-4 | S-120-4 | F-160-4 | S-160-4 |
| F-200-2 | S-200-2 | F-240-2 | S-240-2 |
| F-200-3 | S-200-3 | F-240-3 | S-240-3 |
| F-200-4 | S-200-4 | F-240-4 | S-240-4 |
| F-300-2 | S-300-2 | F-350-2 | S-350-2 |
| F-300-3 | S-300-3 | F-350-3 | S-350-3 |
| F-300-4 | S-300-4 | F-350-4 | S-350-4 |
| F-400-2 | S-400-2 | F-450-2 | S-450-2 |
| F-400-3 | S-400-3 | F-450-3 | S-450-3 |
| F-400-4 | S-400-4 | F-450-4 | S-450-4 |
| F-500-2 | S-500-2 | F-600-2 | S-600-2 |
| F-500-3 | S-500-3 | F-600-3 | S-600-3 |
| F-500-4 | S-500-4 | F-600-4 | S-600-4 |
| | | F-600-5 | S-600-5 |

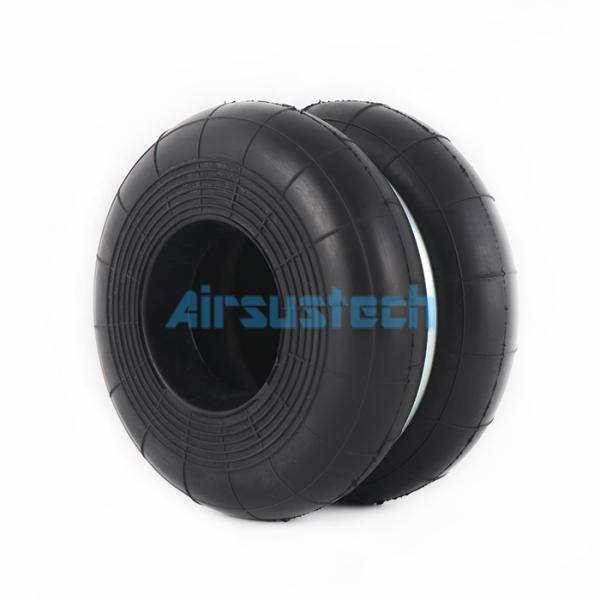

F-120-2 Detailed Pictures
Factory Workshop
