Goodyear: 2B6945 Cross others OEM
GUOMAT NO.2B6945
Firestone Part NO.:W01-358-6945
Firestone Part NO.:W01 358 6945
Firestone Part NO.:W013586945
Firestone Bellows NO.:20-2
Contitech Part NO.: FD 200-25 427
Contitech Part NO. :FD200-25 427
Contitech Part NO.:FD20025 427
Goodyear Part NO.: 2B9-253
Goodyear Part NO.:2B9253
Goodyear Part NO.:2B9253
Goodyear Bellows NO.: 578-92-3-206
Goodyear Bellows NO.:578 92 3 206
Goodyear Bellows NO.:578923206
Triangle: 6332/4427
Leland : Sc2125
Watson&Chalin: AS0119F
Watson&Chalin:AS01451G
Ridewell1003586945C
GUOMAT 2B6945 Specifications and Technical Data
Compressed Height: 3.12 inches /
Top Cover Plate Diameter: 6.31 inches / 160mm
Bottom Cover Plate Diameter: 6.31 inches / 160mm
Screw Center Distance : 89 mm
Distance Gas Hole Between Nut: 44.5 mm
Top Cover Plate Screw (Nut) Tooth : 2X1/2-13UNC
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
One hole in the middle of the Bottom Cover Plate:10.3
Rubber Bellows MAX Diameter: 262 mm
The Working Stroke : MAX 325 mm to MIN 95 mm
Gas Hole / Air inlet : 1/4 NPTF
Firestone Bellows Number: 20-2
Goodyear Bellows Number: 578-92-3-206 / 578923206 / 578 92 3 206
Bellows NO.: 20-2
Assembly Weight: 8.1 lbs
Design Height: 9-11 inches
Loading Capacity at 20 psig: 648 lbsf
Loading Capacity at 60 psig: 1,944 lbsf
Loading Capacity at 90 psig: 2,916 lbsf
Maximum Diameter: 10.4 inches
Operating Temperature: 56Cº to -53Cº

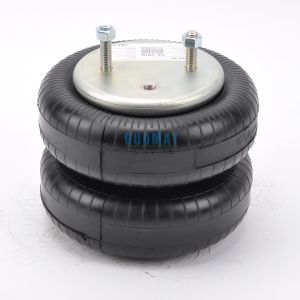

Description and application Of GUOMAT 2B6945 air spring:

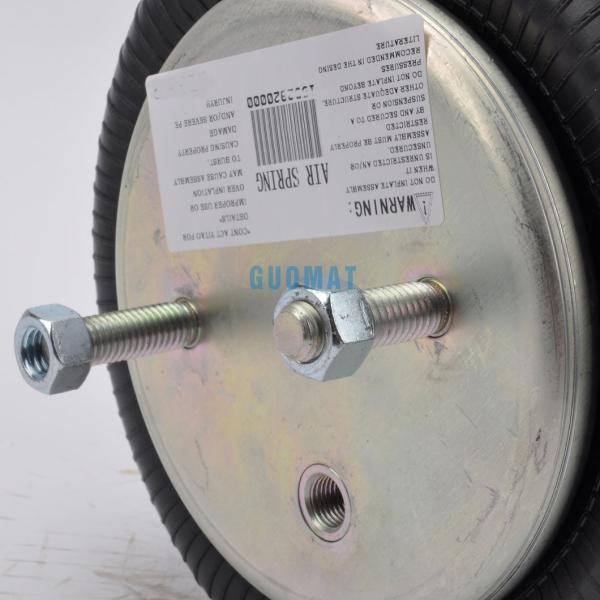

This kind of GUOMAT 2B6945 that has two Two Pillars Nuts at the top of the Cover Plate And Two Blind Nuts at the bottom of the Cover Plate. one Gas Hole / Air inlet 1/4 NPTF at the side of the top of the cover plate.This air spring can be used on trailers for retrofitting. At the same time can be used in many industrial equipment.It is very convenient to install.

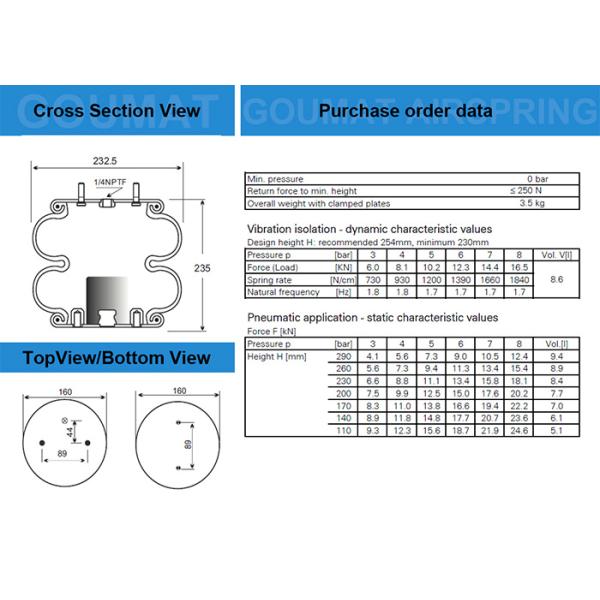

The drawing and data of GUOMAT 2B6945 air spring:
